41 Coffee Bar Ideas, Drawn to Scale
Short answer
A home coffee bar needs about 24 inches of width, 16 inches of depth, a surface around 36 inches high and an outlet within 3 feet. Below are 41 ways to get there, from a tray on the counter to a closet conversion, each drawn as a front elevation with its real width.
Coffee bar, coffee station, coffee corner, coffee nook: same thing, different sizes. Every drawing uses a 6 inch dot grid, so you can compare a 22 inch cart with a 56 inch sideboard and hold a tape measure up to your own wall. Budget marks cover furniture and accessories, not the machine: $ is under $100, $$ is $100 to $400, $$$ is more.
01Counter corners
The cheapest coffee bar is the one you carve out of the counter you already have. Two feet of run next to an outlet is enough.
- Cups on top of the machine need 3 to 4 in more room.
- Grinder beside the machine, on your dominant side.
- A mat under the machine catches drips and grounds.
- 18 in under wall cabinets. Measure your machine with the lid open.
- Tray for the small stuff. Lifts off in one move.
No. 01W 30 · D 16 in · $
The tray station
A tray turns a random stretch of counter into a defined coffee spot. Machine beside it, sugar, spoons and two mugs on it. When you need the counter back, the whole thing lifts off in one move.
You need Tray about 12 x 18 in · Drip or pod machine · Small canister
Trays and other accessoriesNo. 02W 36 · D 24 in · $
Under-cabinet corner
The corner where two counter runs meet is usually wasted. Put the machine there at an angle and use the 18 inches under the wall cabinets for a mug rail. Check the machine's height first: many espresso machines need top access to fill the water tank.
You need Under-cabinet mug rail · Machine under 17 in tall · Counter mat
Kitchen coffee stationsNo. 03W 30 · D 20 in · $

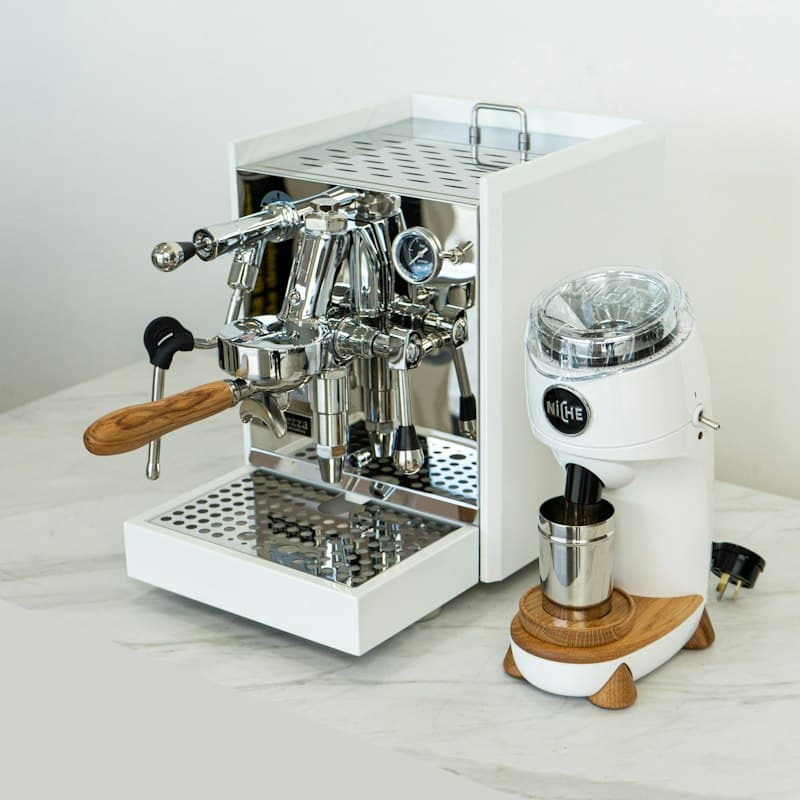

Espresso and grinder, side by side
An espresso machine and a grinder need about 24 inches of width together, plus elbow room for tamping. Keep the grinder on the side of your dominant hand and a knock box or small bin within reach.
You need 24 to 30 in of clear counter · Tamping mat · Outlet within 3 ft
Home barista setupNo. 04W 36 · D 18 in · $
Counter with one open shelf
One floating shelf about 18 to 20 inches above the counter holds the mugs and beans, which frees the counter for the machine. It is the single most useful upgrade to a plain counter station.
You need 36 in floating shelf · Wall anchors or studs · Canisters
Coffee bar shelvesNo. 05W 24 · D 14 in · $
The pour-over bench
No machine at all: a gooseneck kettle, a dripper or Chemex, a hand or electric grinder, and a scale. It needs less than two feet of counter and one outlet, and it packs into a drawer.
You need Gooseneck kettle · Dripper and filters · Scale
No. 06W 42 · D 18 in · $
Coffee and tea counter
If half the household drinks tea, split the station down the middle: coffee maker on one side, kettle on the other, shared mugs and sweeteners between them. A two-tier shelf riser keeps tea boxes off the work surface.
You need Electric kettle · Tea organizer box · Shared tray for sweeteners
What to stockNo. 07W 30 · D 24 in · $
End of the island
The short end of a kitchen island works well if it has an outlet, because it keeps coffee traffic out of the cooking zone. Keep it to the machine and one tray so the island still works as an island.
You need Island outlet · Low-profile machine · Tray
No. 08W 36 · D 24 in · $$$
Appliance garage
A cabinet that sits on the counter with a lift-up or tambour door hides the whole station when you're done. It needs a dedicated outlet inside and at least 18 inches of interior height for most machines.
You need Outlet inside the cabinet · 18 in+ interior height · Pull-out tray (optional)
Built-in options
02Small spaces
Apartments, studios, rentals and bedrooms. Most of these fit in 30 inches of width or less, and most need no drilling.
- A mug rail stores mugs with no shelf depth.
- Pod machine: the smallest footprint, about 6 x 13 in.
- 24 in wide fits between a door frame and a corner.
- Doors hide filters, pods and backup beans.
No. 09W 24 · D 14 in · $$
The 24 inch apartment station
A narrow console or a 24 inch cabinet against any free wall. Pod or compact drip machine on top, mugs on a rail above, supplies behind the doors. It fits between a door frame and a corner.
You need 24 in cabinet, 12 to 16 in deep · Mug rail · Power strip
More small coffee bar ideasNo. 10W 30 · D 10 in · $
Floating shelf bar
No floor space at all: a deep floating shelf at counter height becomes the bar, and a second shelf above holds mugs. Use a shelf at least 10 inches deep, screw it into studs, and keep to a light machine.
You need Shelf 10 to 12 in deep, into studs · Pod or manual brewer · Second shelf for mugs
Shelf load and sizingNo. 11W 26 · D 18 in · $$
Microwave and coffee stack
In a small kitchen the microwave and the coffee maker compete for the same counter. A sturdy cart or baker's rack takes both: microwave on the middle shelf, coffee on top.
You need Cart rated for 60 lb+ per shelf · Surge-protected power strip
Coffee bar cartsNo. 12W 30 · D 8 in · $

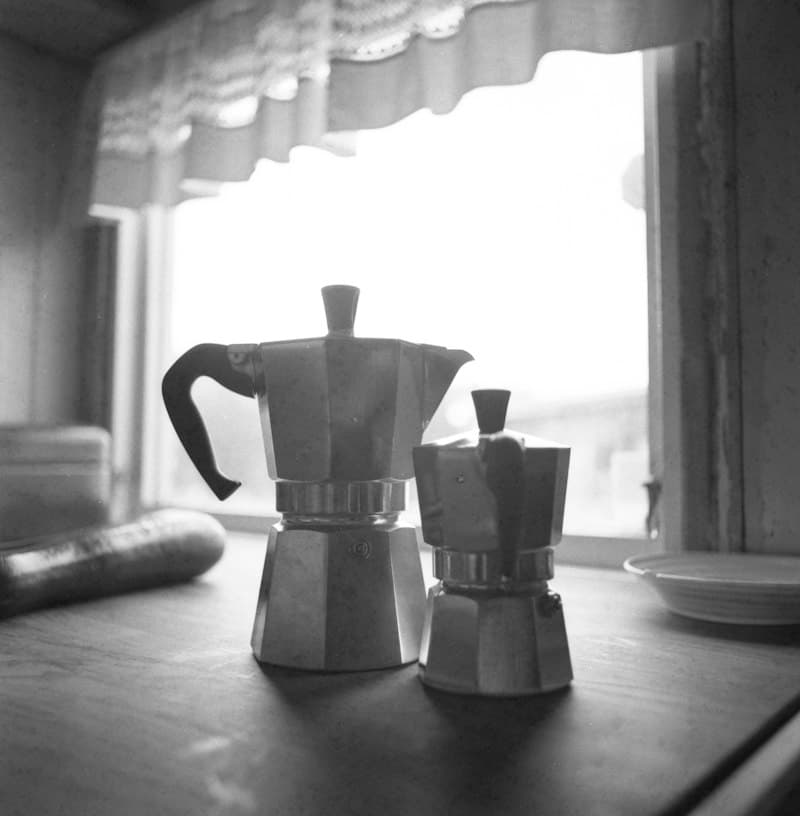

Windowsill moka corner
A moka pot or French press needs no counter outlet, so the station can live anywhere: a deep windowsill, the end of a bookshelf. Keep beans out of direct sun in an opaque canister.
You need Moka pot or French press · Opaque canister · Small tray
Keeping beans freshNo. 13W 30 · D 12 in · $
One bay of a bookcase
Clear one shelf of a bookcase at about waist height and give it to coffee. Measure the opening first: you need the machine's height plus a few inches to lift the lid or pull the water tank.
You need Shelf opening 16 in+ tall · Cable hole or gap at the back · Shelf liner
IKEA coffee bar ideasNo. 14W 18 · D 14 in · $
Studio apartment cart
A 3-tier utility cart holds the whole setup in about 18 by 14 inches of floor. Brewer on top, mugs in the middle, beans and filters at the bottom. It parks beside the fridge and rolls to an outlet.
You need 3-tier utility cart · Compact brewer · Mug hooks on the side rail
Coffee bar on a budgetNo. 15W 36 · D 16 in · $
Dresser-top coffee station
A bedroom dresser is already the right height. Use a tray to protect the top from water, pick a quiet pod machine or kettle, and keep milk in a mini fridge if you take it.
You need Waterproof tray or mat · Quiet machine · Small lidded bin
Bedroom coffee stationsNo. 16W 48 · D 12 in · $
Desk corner station
When there is no second surface, give coffee the far corner of the desk: a mug warmer, a French press or pour-over, and a lidded canister. Nothing that needs plumbing or makes a mess.
You need Mug warmer · French press · Tray to contain drips
Electric mug warmers
03Nooks and closets
An alcove, a closet, or the dead end of a hallway. If it has (or can get) an outlet, it can hold a coffee nook.
- Take the doors off, or keep them to hide the lot.
- LED strip under the first shelf lights the work area.
- Have an outlet added inside. No cords under the door.
- First shelf 18 to 22 in above the counter.
- Counter or cabinet cut to the closet width.
No. 17W 34 · D 22 in · $$$
Closet coffee nook
A 30 to 36 inch reach-in closet converts well: counter-height cabinet or butcher block across the opening, two shelves above, doors off or left on to hide it. Have an electrician add an outlet if there isn't one.
You need Outlet in the closet · Counter or cabinet cut to width · 2 shelves · LED strip
How to set up a coffee barNo. 18W 28 · D 16 in · $$
Pantry station
One pantry shelf at counter height, 16 inches deep or more, takes the coffee gear off the kitchen counter entirely. Leave the door open while brewing so steam can escape.
You need Outlet in the pantry · Shelf 16 in+ deep · Pull-out tray (optional)
Kitchen coffee stationsNo. 19W 40 · D 18 in · $$
Alcove with a built-in look
A wall recess beside a chimney breast or between two doorways fits a base cabinet plus shelves cut to the exact width. Painted the wall colour, it reads as built in for the price of a cabinet and three boards.
You need Base cabinet close to alcove width · Shelves cut to fit · Sconce or LED strip
DIY coffee stationNo. 20W 30 · D 18 in · $$
Under the stairs
The tall end of an under-stair space often has 36 inches of width and full standing height. A small cabinet and one shelf fit there. Run power from an adjacent room's circuit rather than an extension cord.
You need Proper outlet · 30 in cabinet · One shelf · Light
No. 21W 32 · D 14 in · $$
Breakfast nook corner
If you already have a breakfast nook, put the coffee within arm's reach of the table: a slim console or a corner shelf unit with the machine, mugs and a thermal carafe for refills.
You need Console 12 to 14 in deep · Thermal carafe · Mug rail
No. 22W 36 · D 14 in · $$
Hallway dead end
The end wall of a hallway near the kitchen is often 36 to 40 inches wide and does nothing. A shallow cabinet there, 12 to 15 inches deep, keeps the walkway clear and gives you a full station.
You need Shallow cabinet, 15 in deep max · Outlet · Wall art or sign
Coffee bar cabinets
04Carts
A cart is a coffee station that moves. Good for renters, for kitchens with no spare counter, and for anyone who rearranges.
- The handle doubles as a towel bar.
- Top shelf rated 40 lb or more for espresso.
- Lower tier: syrups, beans, spare mugs.
- Locking casters. Lock them before you tamp.
No. 23W 30 · D 16 in · $$
Classic two-tier bar cart
A bar cart about 30 inches wide takes a machine, a grinder and a tray of mugs on top, with syrups and beans on the lower tier. Lock the casters before you tamp or press anything.
You need Cart with locking casters · Top shelf rated 40 lb+ · Tray for the lower tier
How to choose a coffee cartNo. 24W 36 · D 20 in · $$
Kitchen island cart
A butcher-block kitchen cart is heavier and steadier than a bar cart, with a drawer for filters and spoons. At 36 inches tall it lines up with your counters and can act as an extension of them.
You need 36 in tall kitchen cart · Drawer organizer · Towel bar for hooks
Coffee bar cartsNo. 25W 32 · D 18 in · $$
Shared office cart
For a team of five to fifteen, a cart beats a counter because it can move to the meeting room. Use a machine with a large reservoir or a thermal carafe, and label the supplies.
You need Thermal carafe brewer · Lidded bins for pods and sweeteners · Spill mat
Office coffee stationsNo. 26W 22 · D 14 in · $
Guest room cart
A small cart with a kettle, a pod machine, mugs and a few tea bags gives guests coffee without coming to the kitchen. Wheel it out when the room is a home office again.
You need Small 2-tier cart · Kettle or pod machine · Tray with sweeteners
Bedroom coffee stationsNo. 27W 30 · D 16 in · $$
Weekend brunch cart
Stock a cart for guests and roll it to the dining table: carafe of drip or cold brew, syrups, milk jug on ice, mugs. It works the same for a hot chocolate bar in December.
You need Thermal carafe · Syrups with pumps · Mugs for 6 to 8
Syrups, creamers and cold brew
05Cabinets, sideboards and hutches
Freestanding furniture gives you a full coffee bar without touching the kitchen. Closed storage below keeps the clutter out of sight.
- Closed storage, 16 to 20 in deep, holds everything.
- Legs make it easy to clean underneath.
- Shelf 18 in or more above the top.
- Top at least 16 in deep, 18 in for espresso.
- Cable hole in the back panel, or drill one.
No. 28W 56 · D 18 in · $$$
Sideboard coffee bar
A dining room sideboard or buffet, 48 to 60 inches wide, is the easiest full-size coffee bar. Everything lives behind doors, the top stays styled, and it sits where people actually drink the coffee.
You need Sideboard 16 to 20 in deep · Cable hole at the back · Waterproof mat under the machine
Coffee bar cabinetsNo. 29W 38 · D 18 in · $$$
Cabinet with hutch
A hutch stacks open shelves on a cabinet, so one 36 inch footprint holds the machine, 12 or more mugs and all the supplies. Check the gap between the cabinet top and the first hutch shelf: you want 18 inches or more.
You need 18 in+ clearance over the counter · Anti-tip strap · Cable cutout
Is a hutch worth itNo. 30W 48 · D 20 in · $$$
Coffee bar with mini fridge
Milk, creamer and cold brew on the spot. A compact fridge around 18 inches wide fits an open bay of a cabinet or under a table. Leave the gap the manufacturer asks for around it, usually an inch or two at the sides and back, so it can vent.
You need Open bay about 20 in wide · Ventilation gap · Two outlets or a rated strip
Mini fridge setupsNo. 31W 44 · D 18 in · $$
Farmhouse buffet
A painted or raw-wood buffet, a wooden sign, mugs on a peg rail, canisters in enamel or stoneware. The look depends on texture, so skip anything glossy and keep the cords hidden.
You need Wood buffet or dresser · Peg rail · Stoneware canisters
Farmhouse coffee bar ideasNo. 32W 48 · D 18 in · $$$
Modern slab-front cabinet
Flat handleless doors, one material, nothing on the wall but a single shelf. A modern coffee bar is mostly about what you leave out: three objects on top, everything else behind the doors.
You need Handleless cabinet · One long shelf · Matching canisters
Modern coffee bar ideasNo. 33W 32 · D 16 in · $$
IKEA cabinet, new top
A basic flat-pack cabinet with a butcher-block or stone-look top and new pulls passes for custom. It is the cheapest route to a 36 inch high work surface with closed storage.
You need Flat-pack base cabinet · Wood top cut to size · New pulls
IKEA coffee bar ideasNo. 34W 42 · D 14 in · $$
Console table bar
An open table costs less than a cabinet and looks lighter in a small room. Use the lower shelf for baskets so the supplies are hidden. Pick one at least 14 inches deep or the machine will overhang.
You need Table 14 in+ deep, 30 to 36 in tall · Two baskets · Cord clips
Coffee bar tablesNo. 35W 44 · D 16 in · $$
Home office credenza
Put the station on the credenza behind your desk, not on the desk. It saves the walk to the kitchen between calls and keeps liquids away from the keyboard.
You need Credenza or low cabinet · Pod machine or kettle · Coaster and tray
Office coffee stations
06Shelves and walls
When the floor and the counter are full, go up. Shelves, rails and pegboards put mugs and beans within reach.
- Screw brackets into studs, 16 in apart.
- Daily mugs on the lower shelf, at eye level.
- First shelf 18 to 20 in above the surface.
- Second shelf 12 in higher, for backstock.
No. 36W 34 · D 8 in · $

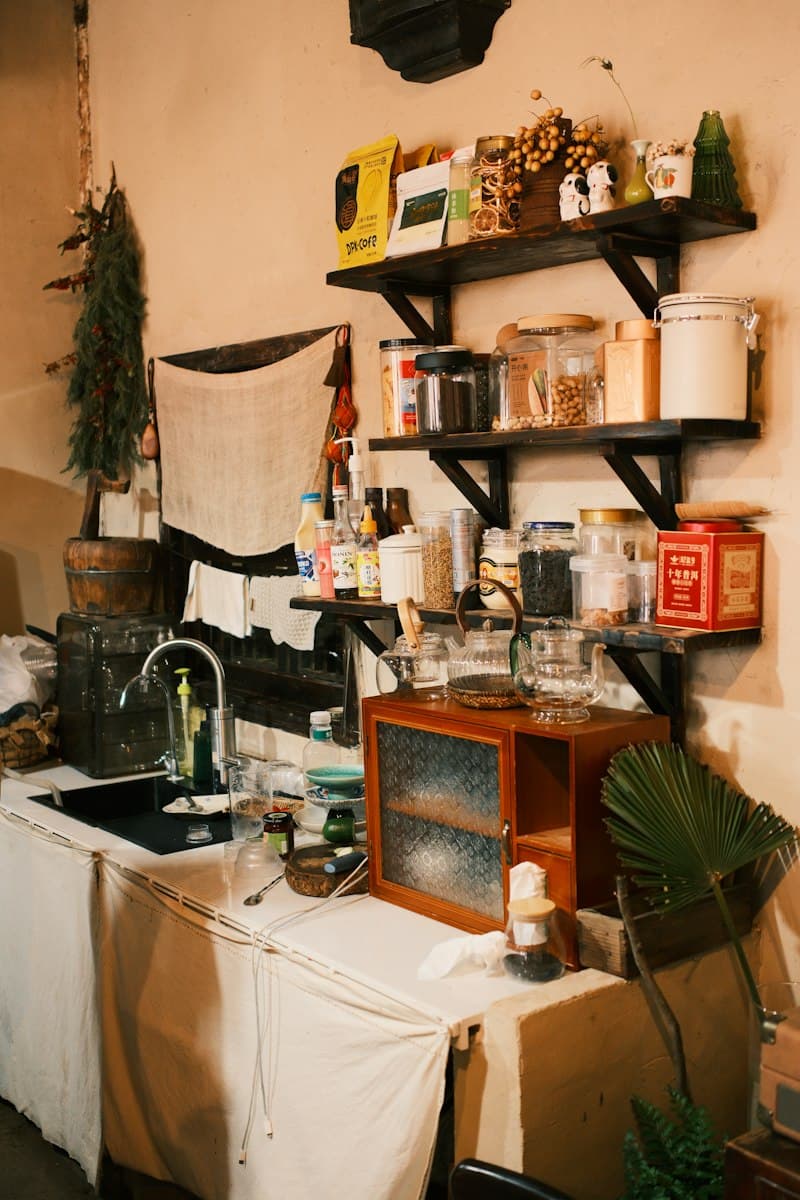

Two shelves over any surface
Two 30 to 36 inch shelves, the first 18 to 20 inches above the surface and the second 12 inches above that. The lower one holds daily mugs, the upper one holds backstock and a plant.
You need Two shelves 8 to 10 in deep · Stud finder · Level
Coffee bar shelvesNo. 37W 36 · D 5 in · $
Mug rail
A rail with S-hooks stores six mugs in 30 inches of wall and no shelf depth. Hang it so the bottom of the mugs clears the machine by a few inches.
You need Rail 24 to 36 in · S-hooks · Two wall anchors
Mug racks and hooksNo. 38W 28 · D 4 in · $
Pegboard wall
A pegboard lets you move hooks and small shelves around as the collection changes. Good above a cart or a narrow cabinet, where it adds storage without adding depth.
You need Pegboard about 24 x 32 in · Spacers so hooks can seat · Peg shelf and hooks
Coffee bar organizationNo. 39W 36 · D 3 in · $
Sign and sconce
A sign or a piece of art centred over the station, with a plug-in sconce above it, makes a plain cabinet read as a deliberate coffee bar. It is decoration, so do it last.
You need Sign or framed print 16 to 24 in wide · Plug-in sconce · Cord cover
How to style a coffee barNo. 40W 18 · D 20 in · $
The gap beside the fridge
A 12 to 18 inch gap between the fridge and a wall fits a narrow rolling pantry or a stack of short shelves for beans, filters and backup mugs. It is storage, so the brewing still happens on the counter.
You need Slim rolling pantry or 3 short shelves · Bins that fit the width
Coffee bar organizationNo. 41W 34 · D 4 in · $
Picture ledge and hooks
A 4 inch picture ledge will not hold a machine, but it holds a row of espresso cups, a small print and a tin of beans. Add a few hooks underneath for mugs. It suits rentals because it needs only two or three screws.
You need Picture ledge 30 to 45 in · Cup hooks
Showing of 41 setups
No setup matches all three filters.
How much room each type needs
| Setup | Width | Depth | Typical cost |
|---|---|---|---|
| Tray on the counter | 24 to 30 in | 16 in | Under $100 |
| Floating shelf bar | 24 to 36 in | 10 to 12 in | Under $100 |
| Cart | 18 to 36 in | 14 to 20 in | $50 to $300 |
| Console table | 30 to 48 in | 14 to 16 in | $100 to $350 |
| Cabinet or sideboard | 30 to 60 in | 16 to 20 in | $150 to $800 |
| Cabinet with hutch | 30 to 48 in | 16 to 20 in | $300 to $1,000 |
| Closet or alcove conversion | 28 to 48 in | 18 to 24 in | $300 and up, plus electrical |
Costs are for furniture and accessories, not the machine. When you have picked a direction, the setup guide walks through power, surfaces and layout, and the furniture guides cover what to measure before buying.
By room and style
Ideas
Bedroom Coffee Station Ideas: Quiet, Compact, and Spill-Proof
How to set up a bedroom coffee station: where it fits, the quietest ways to brew, handling water without a sink, and protecting wood furniture.
Ideas
Coffee Bar with Mini Fridge: Sizing, Placement and Setup Ideas
How to add a mini fridge to a home coffee bar: what size to buy, ventilation clearances, power and noise, what to stock, and three layouts.
Ideas
Farmhouse Coffee Bar Ideas: Materials, Furniture and a $65 Build
How to build a farmhouse coffee bar: the five materials that define the look, thrifted furniture that works, three color palettes and a $65 DIY list.
Ideas
IKEA Coffee Bar Ideas and Hacks That Work
Which IKEA pieces make a good coffee bar (KALLAX, BESTÅ, RÅSKOG, LACK, ALEX), which to skip, and a full build for about $145.
Ideas
Kitchen Coffee Station Ideas: Counter, Pantry, Island, Built-In
Where to put a coffee station in a kitchen, how much counter it needs, what fits under upper cabinets, and when a built-in bar or sink is worth it.
Ideas
Modern Coffee Bar Ideas: Clean Lines, Five Items, Nothing Extra
How to set up a modern, minimalist coffee bar: the five-item rule, materials, console dimensions, four color palettes and what to leave out.
Ideas
Office Coffee Station Ideas: Setup, Costs, and Keeping It Clean
How to set up an office coffee station: three budget tiers, how much coffee a team drinks, power and space needs, and a cleaning system people follow.
Ideas
Small Coffee Bar Ideas for Apartments and Tiny Kitchens
Small coffee bar ideas with real measurements: trays, carts, wall shelves, dead corners, and fold-away setups for apartments and tiny kitchens.
Questions people ask
- How much space do you need for a coffee bar?
- About 24 inches of width and 16 inches of depth is enough for a machine, a grinder or canister, and a couple of mugs. A pod machine on a floating shelf can work in as little as 18 by 10 inches. A full bar with espresso machine, grinder and storage is more comfortable at 36 to 48 inches wide.
- What is the difference between a coffee bar, a coffee station, a coffee corner and a coffee nook?
- They are used interchangeably. Coffee bar tends to mean a piece of furniture or a longer run of counter, coffee station a compact spot on an existing counter, and coffee corner or nook a setup tucked into a corner, alcove or closet. The planning is the same for all of them: power, a stable surface at 34 to 36 inches, and storage within reach.
- How high should a coffee bar be?
- Standard kitchen counter height, 36 inches, is the most comfortable for tamping espresso and pouring. Anything between 32 and 38 inches works. Below 30 inches you will be bending over the machine.
- What do you need for a basic coffee bar at home?
- A brewer, an outlet within about 3 feet, a water-resistant surface or mat, a sealed container for coffee, mugs, and somewhere to put spoons, filters and sweeteners. Everything else (shelves, signs, syrups, a fridge) is optional and can be added later.
- How much does a home coffee bar cost?
- Not counting the machine, a counter station costs under $100 for a tray, canister and mug storage. A cart or console table setup typically runs $100 to $400, and a cabinet, sideboard or hutch $400 and up.
