Can a bar cart hold an espresso machine?

Some can. A home espresso machine weighs 15-30 lb and a grinder 5-15 lb, so you need a top shelf rated for 50 lb or more and a rigid metal or hardwood frame. Light three-tier utility carts are fine for pour-over or drip gear but flex under an espresso machine.

What size coffee cart do I need?

For a drip machine and mugs, a top shelf around 24 in wide by 14-16 in deep works. For an espresso machine and grinder side by side, look for 28-32 in wide and 16-18 in deep.

Do coffee carts need locking wheels?

Yes. A pump espresso machine vibrates, and pressing a portafilter or a lever pushes the cart sideways. At least two locking casters are the minimum, and locks on all four are better.

How tall should a coffee bar cart be?

32-36 inches is comfortable for standing use. Many decorative bar carts are 30-33 inches, which is fine for a drip machine but low for tamping espresso.

Is a coffee cart or a cabinet better?

A cart is better if you rent, move often, have no free wall, or want to test the idea for under $200. A cabinet is better once you need closed storage, more counter space or a heavy machine on a surface that does not move.

Coffee Bar Carts: Sizes, Weight Limits and What to Check

A cart is the lowest-commitment way to get a coffee station: $30-$200, no tools, no holes in the wall, and it moves when you do. The catch is that most carts sold as bar carts are built to hold bottles and glasses, not a 20 lb espresso machine that vibrates. The listing will show you the finish options. It rarely tells you what the top shelf can carry.

Here is what to measure and what to check. For other furniture types, see the furniture hub.

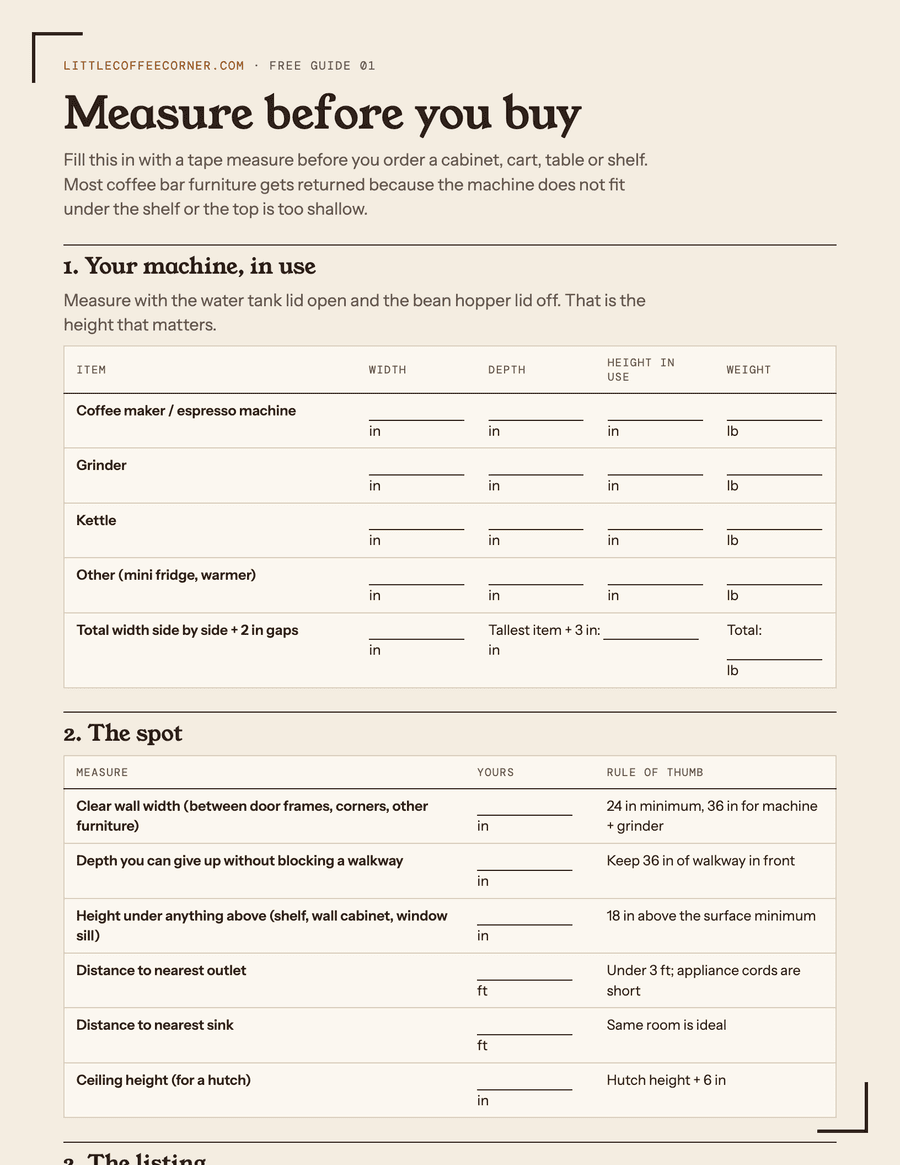

What to measure before you buy

Your machine's footprint and weight. Width, depth, and the weight from the manual. Add the grinder.
The cart's top shelf, not its overall size. Listings give outside dimensions including handles and wheels. The usable top is often 2-4 in smaller each way, and a raised rail around the edge takes a bit more.
Height between tiers. If the grinder or kettle lives on the middle shelf, it has to fit under the top one.
The parking spot. Width of the gap where the cart will live, plus where the nearest outlet is. The cart moves. The cord does not.
Floor transitions. If you plan to roll it between rooms, note any thresholds or rug edges on the way.

Cart size and capacity by setup

Setup	Top shelf width	Top shelf depth	Top shelf rating	Total rating
Pour-over, AeroPress or French press, kettle	16-20 in (41-51 cm)	12-14 in (30-36 cm)	15 lb	40 lb
Drip or pod machine, mugs, canister	24 in (61 cm)	14-16 in (36-41 cm)	25 lb	50 lb
Espresso machine plus grinder	28-32 in (71-81 cm)	16-18 in (41-46 cm)	50 lb or more	100 lb or more

Depth matters more than width. On a shallow cart the machine sits right at the edge, which is where it gets knocked. If you have to compromise, give up width and put the grinder on the second tier.

Height: 32-36 in (81-91 cm) is comfortable for standing. Kitchen-style carts are usually 34-36 in, matching counter height. Decorative bar carts run 30-33 in, which is fine for pressing a button on a drip machine and a little low for tamping.

Weight capacity is the spec that matters most

Add up what goes on top:

Item	Typical weight
Drip coffee maker	5-10 lb
Home espresso machine, tank full	15-30 lb
Burr grinder	5-15 lb
Full electric kettle	about 4-5 lb
Six mugs	5-6 lb

A drip setup lands around 15-20 lb on the top shelf. An espresso setup lands at 30-50 lb. Look for a rating per tier, not just a total. When a listing gives only a total, that number is shared across every shelf, and the top shelf is normally the least supported.

If the listing gives no capacity at all, treat the cart as decorative.

Casters and stability

Locking casters are required, not optional. A vibratory pump shakes the cart during a shot, and locking a portafilter into the group head pushes the whole cart sideways. At least two wheels should lock. All four is better.

Rubber or polyurethane wheels are quiet on hardwood and do not scratch. Hard plastic wheels are louder and slide on tile even when locked.
Larger wheels (2-3 in) roll over thresholds and rug edges. Small casters catch, and a cart that stops suddenly keeps its contents moving.
Keep the weight low. The machine has to be on top, so put the heaviest remaining items, such as water jugs, bean bags and syrup bottles, on the bottom tier. A tall, narrow cart with everything on top tips easily.
Do not roll it loaded with a full water tank unless the route is flat. Empty the drip tray first either way.

Materials compared

Frame and shelves	Strength	Handles spills	Typical price	Notes
Steel frame, wood or laminate shelves	Very good	Good	$100-$200	The safest choice for espresso. Powder coating resists rust
Steel frame, glass or mirror shelves	Good for static loads	Very good	$120-$200	Shows every drip. Glass and a vibrating machine make noise. Better for drip
Light steel utility cart with basket tiers	Fair	Very good	$30-$60	Fine for manual brewing kits. Baskets are not a flat work surface
Solid wood	Good	Needs a sealed finish	$100-$180	Heavier. Use a tray or mat under the machine
Bamboo	Fair	Good	$60-$140	Light and moisture resistant, but thin shelves sag under heavy machines
Kitchen island cart with butcher block top	Very good	Good if oiled or sealed	$200-$300	Wider, with drawers. Closer to a small island than a bar cart

If you go with wood or bamboo, protect the top. A tray or drip mat under the machine is cheap insurance against water rings.

Power and cord management

Park the cart within reach of a wall outlet and plug the machine in directly. Espresso machines and kettles draw 1,200-1,600 W, which is too much for a light-duty extension cord or a cheap power strip. If you need extra length, use a short heavy-duty cord rated for 15 amps.

A cord clip or adhesive hook on the back leg keeps the slack off the floor so the wheels do not run over it. Unplug before you roll.

What to skip

Carts with no stated weight rating.
Wire or slatted top shelves. Machine feet sink between the wires, and small items fall through. If the rest of the cart is right, a cut-to-size board on top fixes it.
Stemware racks under the top shelf. They eat the clearance you need for a grinder or kettle on tier two.
Tall, narrow carts (under 14 in deep and over 34 in high) for anything heavy.
Casters without locks, even if the cart will rarely move.

Where a cart works best

Carts suit rentals, studio apartments, offices and bedrooms: anywhere you cannot or do not want to commit wall space. They also work as the second piece in an L-shaped corner, next to a cabinet. For layouts in tight rooms, see small coffee bar ideas, and for low-cost builds, coffee bar on a budget.

When a cart is not enough

Signs you have outgrown the cart: accessories are stacked two deep, you want a knock box and tamping space beside the machine, or the rattle during a shot annoys you. At that point move to a cabinet or a console table.

That is not money wasted. A few months on a cart tells you how much surface and storage you really use, which is the information you need before spending $300 or more on furniture. The cart then becomes overflow storage or a drinks trolley.
